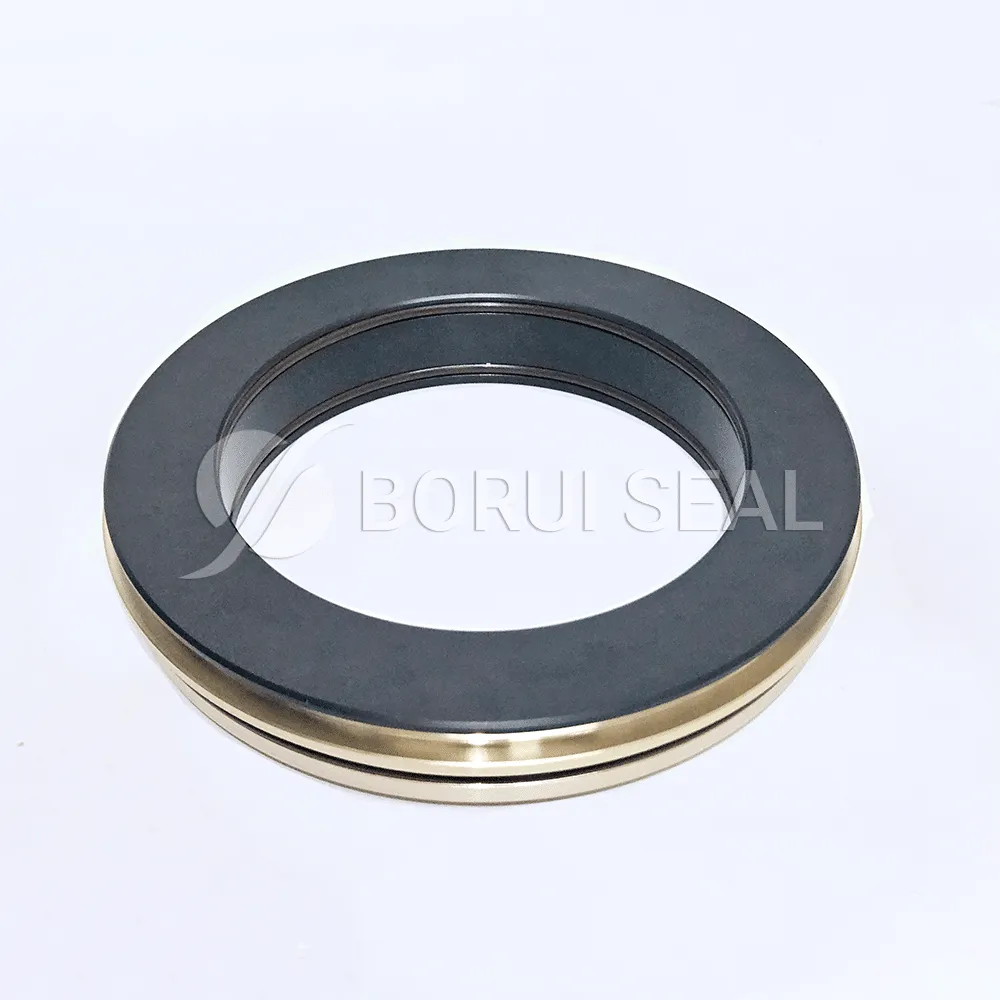

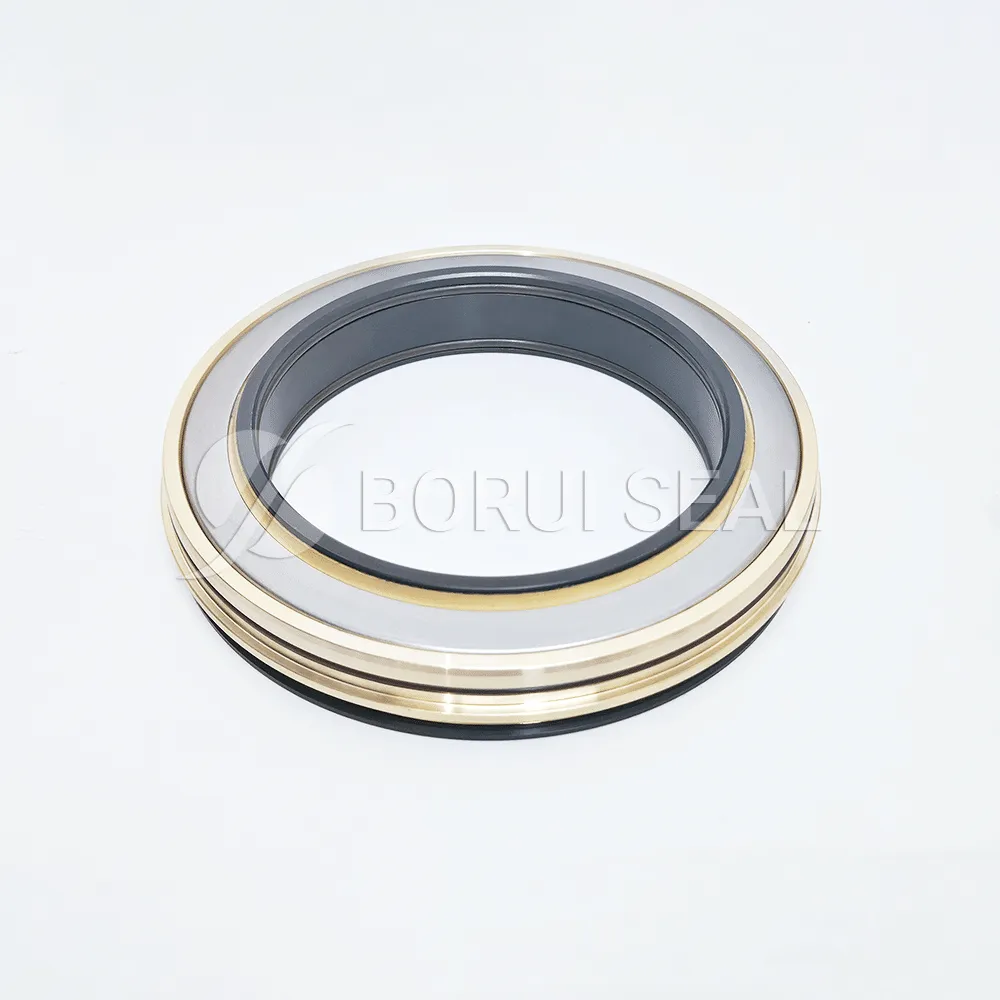

IP67 Mining Isolator

Bearing Isolator (Bearing Protector) is a kind of non-contact, non-wearing, permanent bearing protection device.

It consists of a rotor and a stator, which are unitized by an O-ring, so that the two parts will not be separated during the operation.

The two components interact to keep thepollutants out of the bearing housing and prevent the leakage of the lubricants . The sealing performance of the Bearing Isolator will not degrade over time, which will enable it to provide life-time bearing protection for the rotating equipment.

Features & Benefit

Keeps lubrication in and seals out external contamination.

A combination of labyrinth seal, PTFE lip seal and Magnetic seal.

Can run without leakage of lubricant and influx under water with more than 1m depth.

Specifications

Maximum Shaft Speed	20 m/s
Temperature Limit	-35 ℃~210 ℃
Shaft Size Range	50 mm~400 mm
Maximum Shaft Runout	0~0.4 mm
Maximum Shaft Axial Movement	0~0.5 mm
Materials	Bronze+SS+PTFE+Magnet
Contact us if the operating conditions beyond above limits
