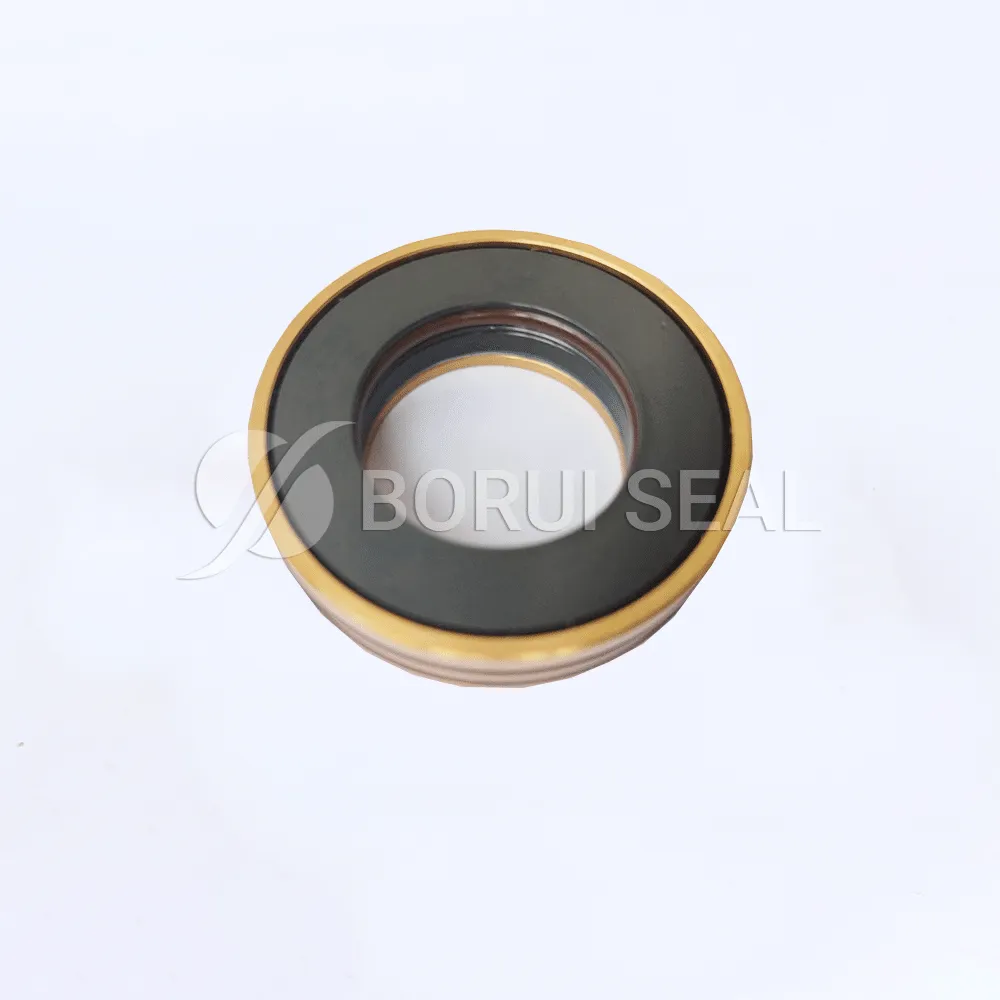

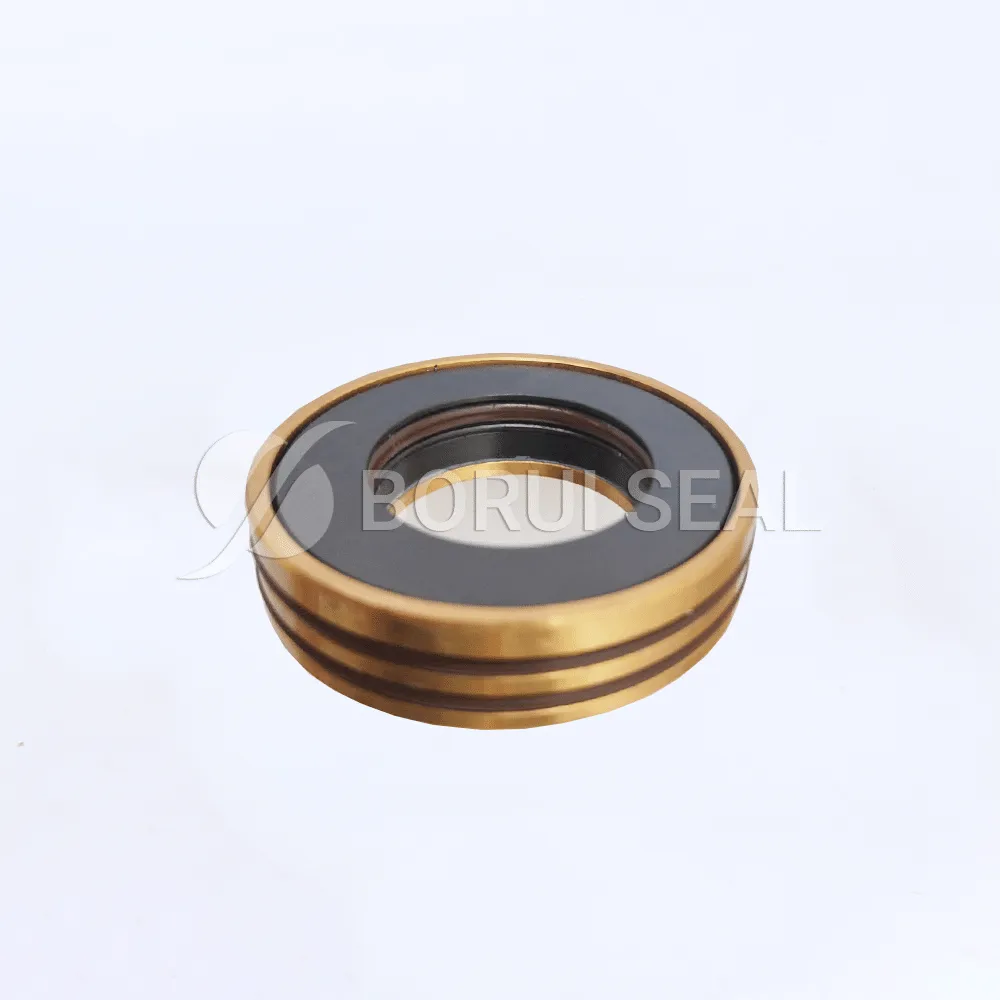

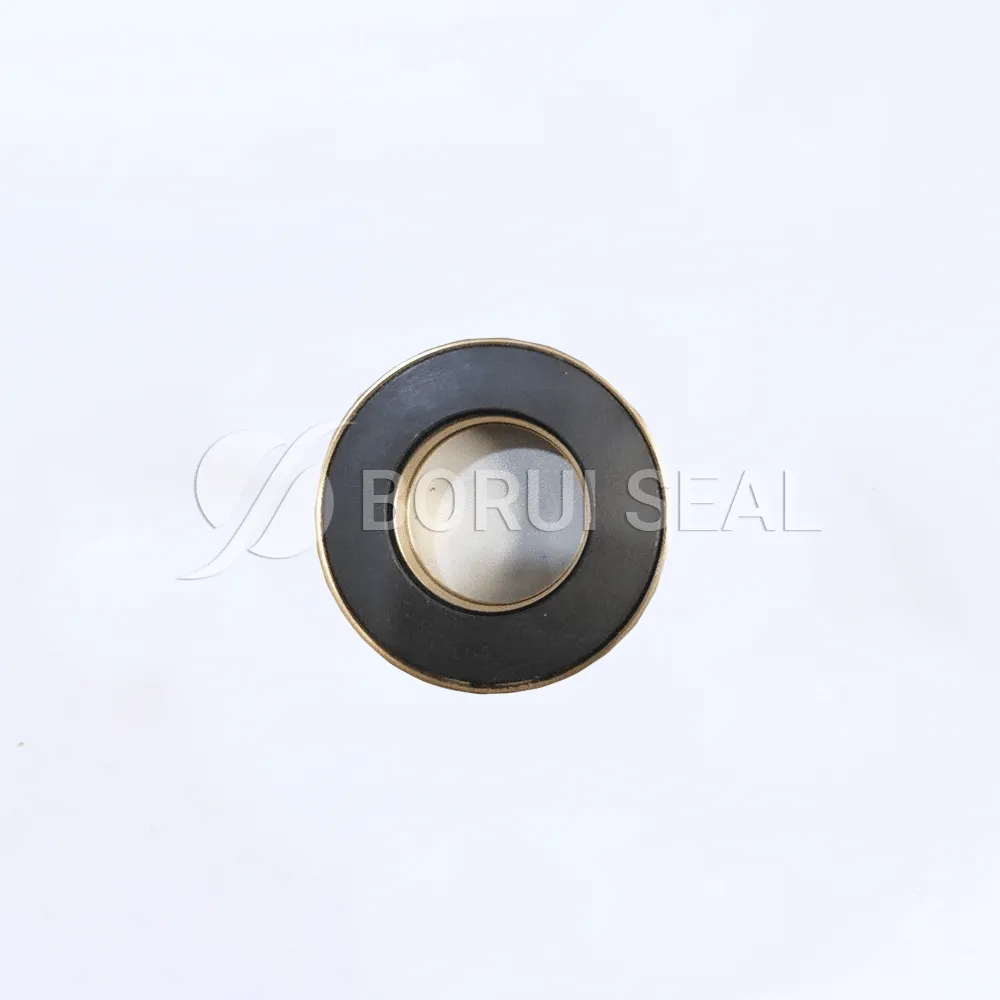

Magnetic Seal is the choice for standard sealing applications and special situations where conventional mechanical seals fall short. BRS magnetic seals are able to operate in difficult environments, such as high speed, high vibration conditions.
Keeps lubrication in and seals out external contamination
Unitized design and durable material provide easy, reliable installation
No damage to the shaft
Reusable and field-repairable
Suitable for high or low shaft speeds
Good performance in lubricated or dry running condition
| Maximum Shaft Speed | 50 m/s |
| Temperature Limit | -35 ℃~210 ℃ |
| Shaft Size Range | 20 mm~4000 mm |
| Maximum Shaft Runout | 0~0.5 mm |
| Maximum Shaft Axial Movement | 0~0.3 mm |
| Materials | Stainless Steel, Bronze, Carbon-graphite, Magnet, FKM |
Pump, Motor, Gearbox, Steam Turbine, Blower
